| Green Caddie: Features and How
to Use Titles
with underlines are clickable and will take you to the corresponding
explanation. |
|
|
| ■Explanation of Each Part & Usage
Method |
|
|
| ■Power |
|
|
| ■Charging |
|
|
| ■Energy Saving |
|
|
| ■Attach GreenCaddie to the Putter |
|
|
|
|
|
| ■How to Play at the Golf Course |
|
|
| ■Actions to Take After Obtaining Green Caddie or Updating
the Putter |
|
|
| ■Perform Initial Setup from the Operation Screen |
|
|
| ■Set Shoulder Height, Dominant Hand, and Language |
|
|
| ■Set Horizontal Calibration |
|
|
| |
|
|
| ■Input Green Speed |
|
|
| *Green
speed is a crucial fundamental factor for calculations and must be set before
playing. |
|
|
| Enter
the green speed announced at the golf course's master room. |
|
|
| Check and Adjust Green Speed |
|
|
| |
|
|
| ■Measure Green Information
(Uphill/Downhill, Slice/Hook) |
|
|
| *Simply
place the putter on the green to perform the measurement. |
|
|
*Determine
the distance to the cup yourself.
|
|
|
| (Try to
be as accurate as possible, |
|
|
| such
as by counting steps.) |
|
|
| *The
measured information is displayed on the measurement screen and the advice
screen. |
|
|
| step1 Measure upload/download. |
|
|
| Tilt
the putter toward the cup, place it on the grass, and measure the
uphill/downhill slope. |
|
|
| step2 Measure slice/hook. |
|
|
| After
completing the uphill/downhill measurement, rotate 90 degrees to measure the
slice/hook. |
|
|
| |
|
|
| ■Launch direction |
|
|
| 1) Compass Mode |
|
|
| After
the slice/hook measurement in Step 2, rotate the putter 90 degrees while
keeping it parallel, aim for the pin, and determine the launch direction. |
|
|
| ２）AimPoint method |
|
|
| |
|
|
| ■Advice (Putting Based on Collected Green
Information) |
|
|
| Each practice swing displays the
estimated putting distance.Take several practice swings to find the one that
matches or closely aligns with your intended distance.Then, putt in the
calculated direction using that swing.(This helps you land within a one-putt
range.) |
|
|
| After putting, the time taken from
setup to stroke (in seconds) and the actual putting distance will be
displayed. |
|
|
| ■Count (Putt Number)
Management |
|
|
| ■Accessories |
|
|
| |
|
|
| How to Operate |
|
|

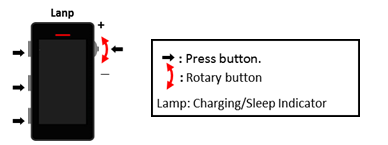

| ■Description of Each Part |
|
|
|
|
|
| Usage
Method |
|
|
|
|
|
| Back |
|
|
| |
|
|
| ■Power |
|
|
ON:
Press and hold OFF: Click
|
|
|
|
|
|
| Back |
|
|
| |
|
|
| ■Charging |
|
|
Charge
using the included Type-C USB cable.
Full charge time: approximately 40 minutes.
Usable for about 2 rounds. |
|
|
|
|
|
| Back |
|
|
| |
|
|
| ■Energy-Saving Mode |
|
|
Two
minutes after turning on the power, the device enters energy-saving mode, and
the red lamp blinks.
To resume, click any button except the power button.
If no action is taken, the device will automatically turn off two minutes
after entering energy-saving mode. |
|
|
| Back |
|
|
| |
|
|
| ■Attachment |
|
|
Attach
the device facing directly upward to a smooth area on the putter shaft
without any steps or bumps.
*Putters with non-magnetic shafts (e.g., carbon) cannot be used. |
|
|
|
|
|
|
|
Straight Diagonal |
|
|
| Back |
|
|
| |
|
|
| ■Operation & Control Modes |
|
|
| There
are three operation modes based on the rotation of the Green Caddie. |
|
|
|
|
|
| Advice Measurement
Settings |
|
|
| Back |
|
|
| |
|
|

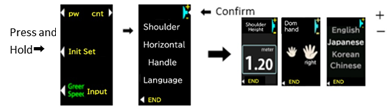

| ■Initial Setup – Shoulder Height, Dominant Hand, Language |
|
|
Rotate
the device upward to enter the settings mode on the operation screen.
➡ Press and hold for initial setup to display the settings menu.
➡ Use +/- to select shoulder height, dominant hand (default: right-handed),
and language (default: Japanese).
➡ Confirm selection.
➡ Input values.
➡ Complete setup. |
|
|
|
|
|
|
|
|
|
| Back |
|
|
| |
|
|
|
|
|
| |
|
|

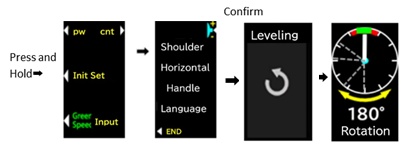

Description
of the Above Diagram
Rotate the device upward to enter settings mode.
➡ Press and hold for initial setup to display the settings menu.
➡ Use +/- to select horizontal calibration.
➡ Confirm (press +/- to start calibration).
➡ Close the device, attach it, and place it on a flat, hard surface.
➡ If interrupted, the horizontal calibration will be invalid. |
|
|
|
|
|
| ➡Until
the putter rotates 180° and is displayed. |
|
|
➡Lift
slightly while keeping it parallel, slowly rotate 180° and place it down when
the green lamp appears.
"END" will be displayed, and the process will automatically
complete. |
|
|
|
|
|
|
|
|
|
| Back |
|
|
| How to Play at the Golf Course |
|
|
| ■Input
Green Speed |
|
|
| Stand
the device upright and enter the green speed announced in the golf course
master room in the settings mode. |
|
|
|
|
|
|
| |
|
|
| *Check and Adjust Green
Speed |
|
|
Check
the green speed on the practice green.
If the displayed distance is shorter than the actual putting distance,
decrease the green speed.
If the displayed distance is longer than the actual putting distance,
increase the green speed. |
|
|
| Back |
|
|
| |
|
|
| ■Step (1): Measure Uphill/Downhill |
|
|
Caution:
Placing the putter on the green automatically starts the uphill/downhill
measurement.
If more than 5 seconds pass after the measurement is completed, rotating
the putter 90° will not allow left/right measurement. |
|
|
| *Place
the putter on the green along the line from the ball to the cup, pointing
towards the pin. This will automatically measure whether the slope is uphill
or downhill.If you do not rotate the putter, continuous measurement is
possible.It is recommended to take measurements as close to the pin as
possible. |
|
|
|
|
|

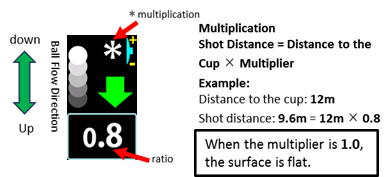

Measurement
Result 1:
The slope is too steep to be measured. |
|
|
|
|
|
Measurement Result 2:
The measured multiplier for the putting distance to the cup. |
|
|
|
|
|
| If no calculation is
performed, manually enter the estimated distance by clicking the +/- buttons
up or down. The putting distance will be automatically calculated. Input
range: 0.5m – 30m |
|
|
|
|
|
| *Uphill/Downhill
Ends End of Uphill/Downhill |
|
|
If you
lift the putter while measuring, the uphill/downhill measurement will be
canceled.
The previously measured result will be cleared. |
|
|
| After
the measurement is complete, lifting the putter will end the process, and the
measurement results will be displayed on the advice screen. |
|
|
| *Measure
Uphill/Downhill Again |
|
|
| If you
place it down without rotating,the uphill/downhill measurement will start
again. |
|
|
| If you
rotate it 90 degrees and place it down, it will switch to slice/hook
measurement. |
|
|
| Back |
|
|
| |
|
|
| ■Step (2): Slice/Hook Measurement |
|
|
| |
|
|
| After the uphill/downhill
measurement is complete, rotate it 90 degrees and place it down to
automatically start the slice/hook measurement. |
|
|
| Note:If
the measurement is not complete and the putter is lifted, the slice/hook
measurement will be canceled.The previously measured result will be
cleared.For continuous measurement, perform the next measurement within 5
seconds. |
|
|
| Measurement
Results |
|
|
|
|
|
|
Slice
Hook Straight
Aim Point Aim Point
Not Measurable
Slice
Hook |
|
|
| The
measurement results will be the values of the Aim Point finger.If measurement
is not possible, the Aim Point will be 5 or higher. |
|
|
| *Lift
it up to finish, and display the measured results on the advice screen. |
|
|
| *Re-measure
slice/hook. |
|
|
| If you
place it without rotating, the slice/hook measurement will start again. |
|
|
| *Check
the direction of the shot using the compass method. |
|
|
| Measurement
not possible; the compass method cannot be used if the ball is hit straight. |
|
|
| Rotate the putter 90° (toward the pin)
while keeping it horizontal, and it will indicate the direction of the shot
using the compass method. |
|
|
| *Indicate
the direction of the shot using the Aim Point method. |
|
|
| Back |
|
|
| |
|
|

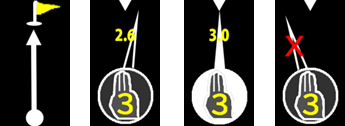

| ■Indicate the direction of the shot – Compass method. |
|
|
| After
completing the slice/hook measurement, rotate the device 90° while keeping it
horizontal (maintaining the slice/hook measurement screen). Then, place the
device on top of the ball, facing the pin, and it will indicate the direction
of the shot. |
|
|
|
|
|
|
|
|
After
facing the pin Rotation Direction of the shot Incorrect direction.
Automatically Direction adjustment.
Compass.
Instruction display
|
|
|
| *The
value is the Aim Point index. |
|
|
| *The
slope value is a reference, and especially in the case of an uphill, it is
necessary to reduce the slope value to some extent. Accumulating a lot
of experience is essential. |
|
|
| Back |
|
|
| |
|
|
| ■Aim Point method. |
|
|
| Aim
Point is a method developed by Mark Sweeney for measuring the slope of
greens. It is a technique used by top players around the world. Many articles
about it are available online. |
|
|
| The
most difficult part of Aim Point is being unable to read the slope.
GreenCaddie, however, allows for reading the slope more accurately than the
slice/hook measurement. |
|
|
*The
slope value is a reference, and especially in the case of an uphill, it is
necessary to reduce the slope value to some extent. Accumulating a lot of
experience is essential.
The following diagram shows the Aim Point method with 3 fingers for a
slice. |
|
|
| |
|
|
|
|
|
| Back |
|
|
| |
|
|
| ■Advice. |
|
|
| Screen
information. |
|
|
|
|
|
|
No measurement Measurement
available Putting.
Complete. |
|
|
| Green
line: An ideal pendulum-like swing motion. |
|
|
| Yellow
line: The actual swing motion. |
|
|
| Red
line: Arm rotation check. A straight line is ideal. |
|
|
| ②Battery
level. |
|
|
| ③Prediction
of the swing distance. |
|
|
| ⑥Time
from setup to shot. |
|
|
| |
|
|
| No
measurement required. |
|
|
|
|
|
|
|
|
The
angle of the putter at address
Around 70 degrees is ideal. |
|
|
|
| Measurement
available. |
|
|
|
|
|
| Multiplication
factor for shot distance |
|
|
|
|
|
|
| Measurement
not available. |
|
|
|
|
|
|
| ⑤ When
this diagram appears, moving the +/- up or down adjusts the distance
input.Once the numerical value is set and the actual estimated distance is
entered, the shot distance is automatically calculated based on the
multiplier. |
|
|
|
| ⑥ Putting
complete |
|
|
| The
time from the final practice swing to striking the ball. If the time is too
long, it becomes difficult to replicate the feel of the practice swing. |
|
|
|
| Back |
|
|
| |
|
|
|
|
|
| |
|
|

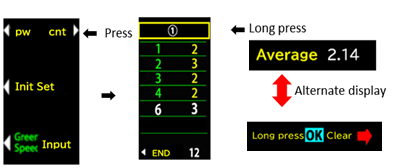

| Use
+/- up and down to input the
number of putts. |
|
|
|
| Long press: Clear all |
|
|
| Back |
|
|
| |
|
|
| ■Accessories |
|
|
|
|
|
| Type-C
USB charging cable |
|
|
| Back |
|
|
|
|
|
